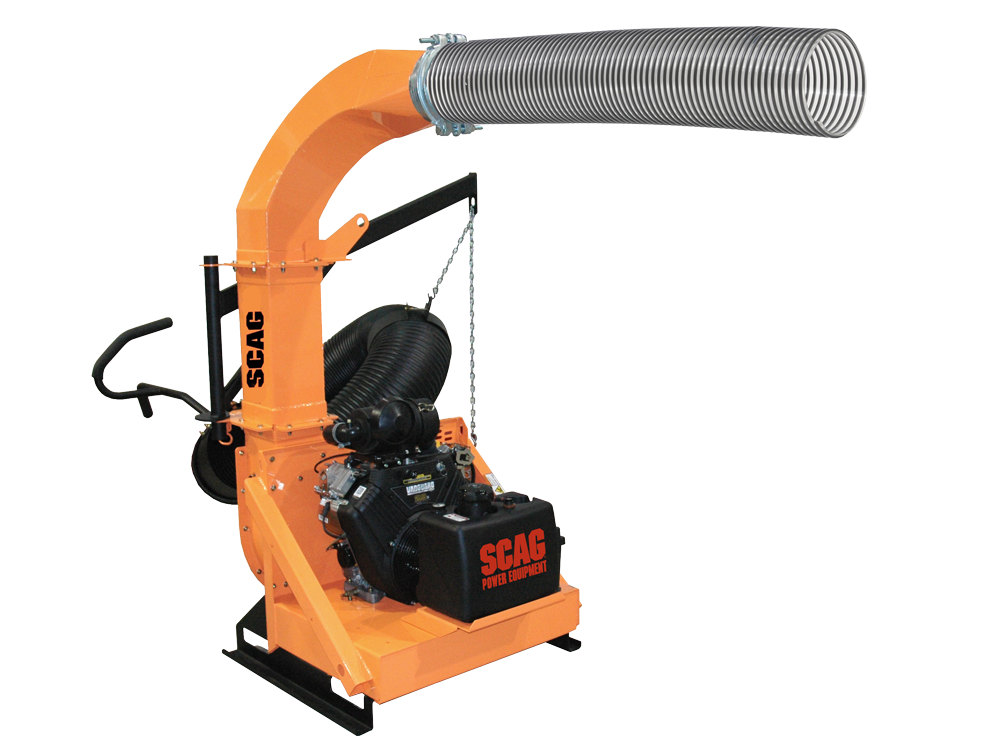

Scag Industrial Skid-Mount

Contact us for price

Stock status: Call Store for Availability

Dynamically balanced for reduced vibration, longer life and less stress on the engine, Scag® Industrial Skid-Mount Truck Loaders boast an effective design.

Call Us Now


Product SpecificationIndustrial Skid-Mount
Fuel Capacity / Tank5.5 gallons – plastic tank with built-in fuel gauge
CFM Output4,680
Frame ConstructionAll-steel, welded
Impeller Construction4-blade, 3/8″-thick blades, all-steel, welded
Impeller MountingTapered locking hub
Impeller Diameter / Width20″ / 6.5″
Blower Housing ConstructionRemovable back panel for easy impeller and wear plate access
Blower Housing Width7.5″
Blower Housing Wear PlatesStandard: 1/4″-steel, replaceable
Hose Specifications120″ length, 12″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
Unit Mounting4″ steel skid risers
Discharge TubeClear thermoplastic, 8″ diameter
Throttle ControlCommercial-grade, all-steel mechanicals, plastic debris cover
Highway Readyn/a
Trailer Widthn/a
Height75″ (without skid mount attached)
Weight675 lb
Warranty2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
