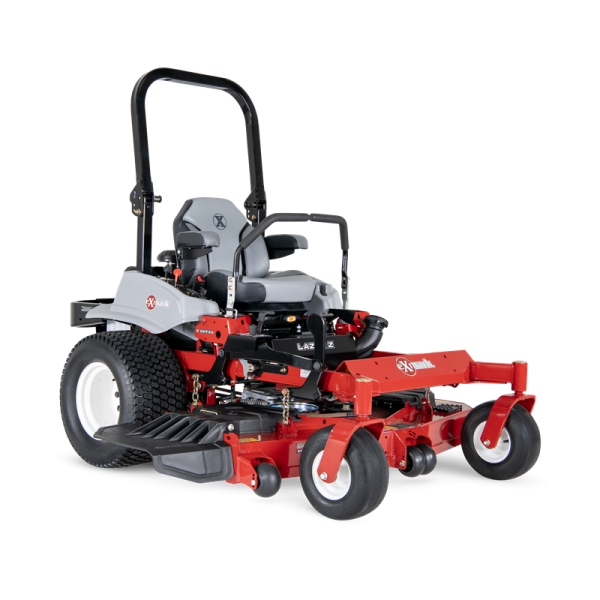

Exmark Lazer Z E-Series with 25.5 HP* Kawasaki FX801V Engine and 60“ UltraCut Series 4 Deck

Contact us for price

Stock status: Call Store for Availability

As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.Like our entire lineup of zero-turn mowers, the Lazer Z E-Series delivers unmatched durability and long-term value. Be sure to check out the rest of the Lazer Z family, including the Lazer Z S-Series zero-turn mower.

Call Us Now

Specs

Width / Cutting Deck

60"

Drive

Hydro-Drive

Starter

Electric

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Caster Forks

.50" thick caster yoke arms.

Front Caster Tires

13 x 6.5-6, smooth tread, pneumatic. Sealed ball bearings.

Drive Tires

24 x 12-12, 4 ply Super Turf TL

Safety Package

Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.

Parking Brake

Lever actuated internal wet disc brake

Tractor Frame

Unibody, welded, heavy-duty 1.5" x 3" tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine hour meter and cup holder

Seat

Deluxe suspension seat, foam flip-up armrests, and integral safety switch. Adjustment: Fore and aft from operator's position.

Engine Brand

Kawasaki®

Transmission Speeds

Infinitely Variable

Engine Model

FX801V

Engine Displacement

852cc

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–11.0 mph forward, 0–6.0 mph reverse.

Engine Spec

FX801-AS31-R

Engine Speed

3750 RPM

Air Filter

Heavy-duty canister air filtration system

Fuel Capacity

9.5-gallon single fuel tank with single fill location

Drive Description

Dual Hydro-Gear ZT-4400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.

Fuel Type

Gas Carbureted

PTO Engagement

MagStop Electromagnetic 175 ft-lb clutch with spot brake

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Mechanical float

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Deck Construction

10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt, and 7-gauge reinforcement plate welded to spindle mounting locations for improved strength.

Cutting Heights

1.5" to 5.5" in 0.25" increments

Blade Tip Speed

Approximately 18,500 fpm

Blades

3 blades at 20.50" Length

Width

72.7"

Height

70.1"

Curb Weight

1080

Length

84.6"
